Description
SPECIFICATION

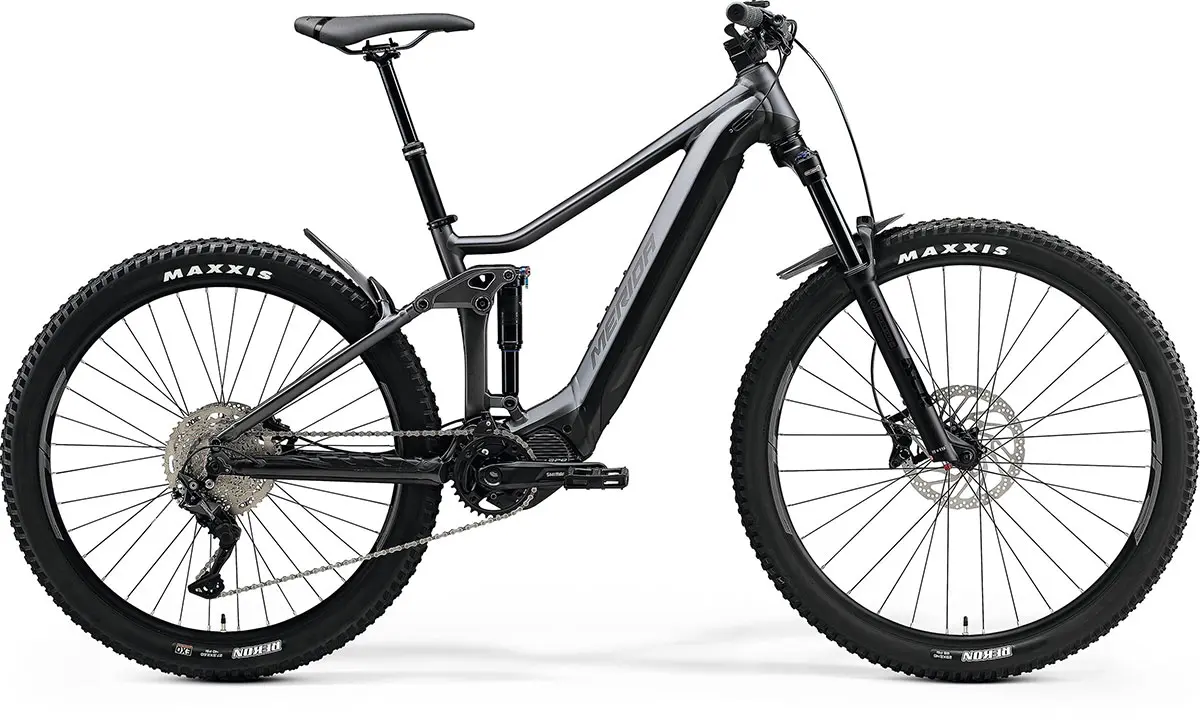

| Brand | Merida |
|---|---|
| Frame | Lite III – Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5″ x 2.8″. |
| Rear Shock | Suntour RS-Edge-TR-LO-R8-M6; lockout |
| Fork | Suntour XCR34 LOR DS; Air; Boost; 140mm; Tapered; 51mm fork offset; Max. tyre size: 29″ x 2.4″ |
| Head Set | Merida-8152 |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise – Stem length: 50mm (all sizes). GoPro & Supernova mount point. |
| Handle Bars | Merida Expert eTR; 780mm wide; 20mm rise |
| Tape Grips | Merida Expert EC |
| Brakes | Shimano M42040; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor |
| Brake Levers | Shimano M4100 |
| Rear Derailleur | Shimano Deore RDM5120 10 |
| Suspension | Full Suspension |
| Shift Levers | Shimano Deore M4100 with Shimano SL -MT500-IL lever |
| Cassette | KMC e10s |
| Chainset | Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank |
| Pedals | Yes |
| Wheels | Merida Comp TR; 29mm inner rim width; Aluminium |
| Front Tyre | Maxxis Rekon; 29″ x 2.4″; Dual; wire bead |
| Rear Tyre | Maxxis Rekon; 27.5″ x 2.6″; EXO; wire bead |
| Saddle | Merida Comp SL; V-mount |
| Seat Post | Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL) |
| Battery | 630 Wh |
| Motor | Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm |
| Material | Aluminium |
