Description
Specification

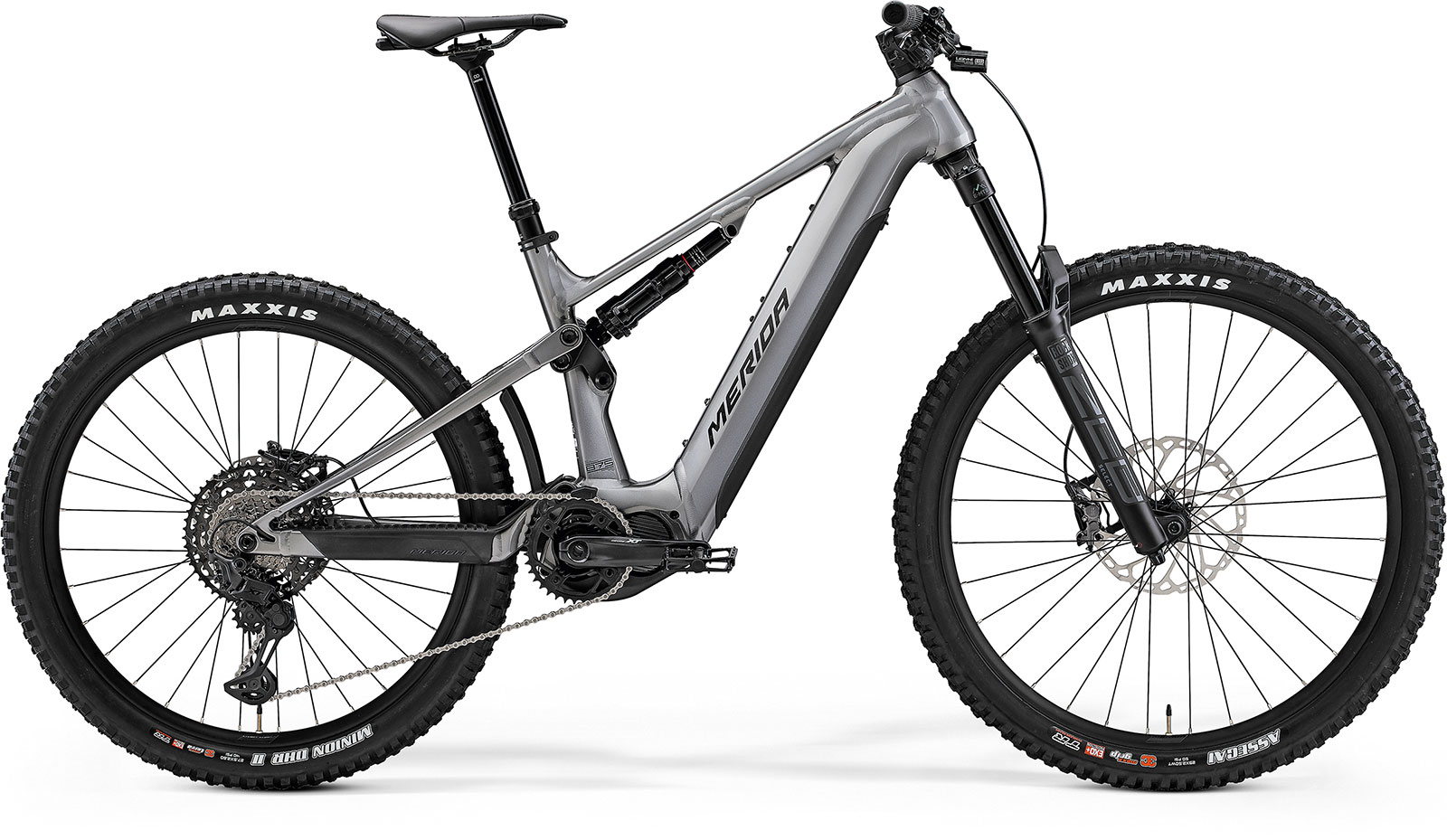

| Brand | Merida |
|---|---|
| Frame | Lite IV – Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29″ x 2.6″ |
| Rear Shock | RockShox Super Deluxe Select |
| Fork | Rock Shox ZEB Select; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29″ x 2.8″ |
| Head Set | Acros ICR Merida external neck w/ Blocklock |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise – Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Handle Bars | Merida Expert eTR; 780mm wide; 20mm rise |
| Tape Grips | Merida Expert EC |
| Brakes | Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor |
| Brake Levers | Shimano XT |
| Rear Derailleur | Shimano XT RDM8130 LinkGlide 11 speed |
| Shift Levers | Shimano XT M8130 and Shimano SL -MT500-IL dropper lever |
| Cassette | Shimano LG700; 10-50 teeth; 11 speed |
| Chainset | FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-E8150 165mm length crank all sizes with MRP 1x chainguide |
| Pedals | VP Components – VPE-527 |
| Wheels | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29″; rear 27.5″ |
| Front Tyre | Maxxis Assegai; 29″ x 2.5″; Kevlar bead; folding; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis DHR II; 27.5″ x 2.6″; Kevlar bead, folding; 3C EXO+ TR |
| Saddle | Proxim W400 STN with V-mount adapter; including Merida minitool |
| Seat Post | Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel |
| Battery | 750Wh |
| Motor | Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP801; 85Nm |
| Discipline | MTB |
| Material | Aluminium |
| Wheel size | 27.5″/29″ |
| Electric | Yes |
| Season | 2024 |
